Recommended Ultrasound Terminology

Figures

Figure 1

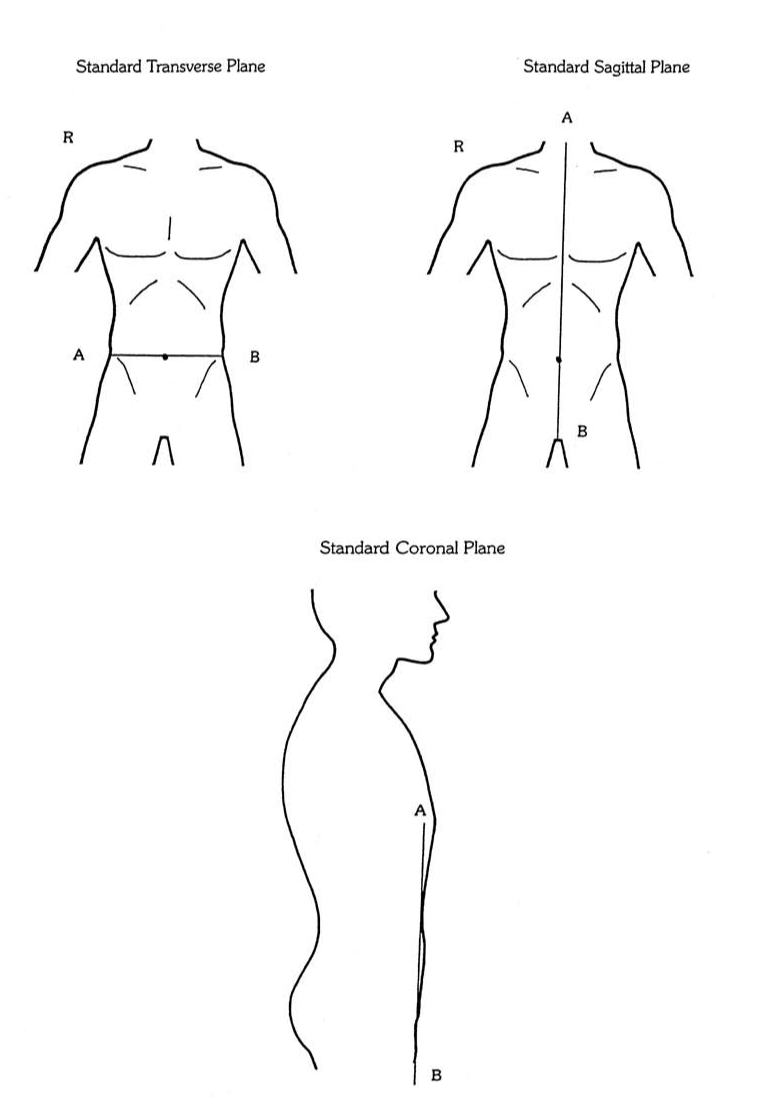

Standard body planes in ultrasound imaging, indicated by the plane perpendicular to the plane of this page and passing through the line A–B.

Figure 1 wo caption

Figure 2

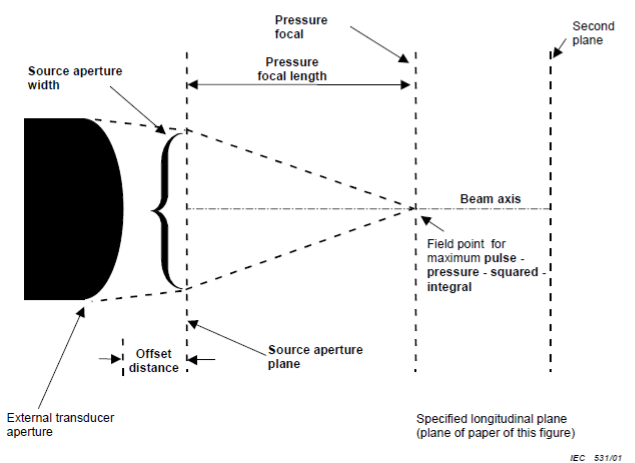

Definitions for focusing measurements when the transducer geometry is unknown ultrasonic transducer.

Figure 2 wo caption

Figure 3

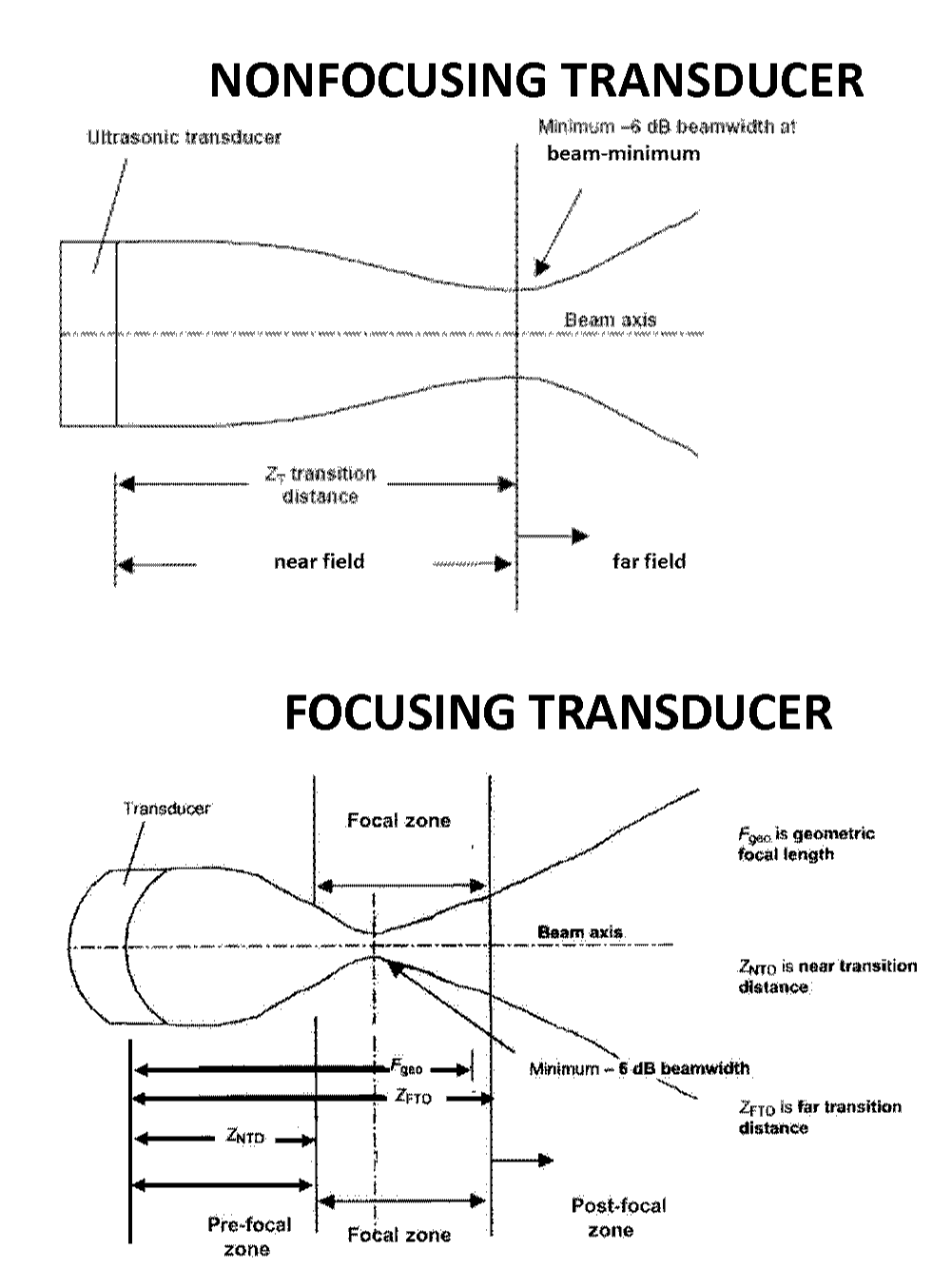

Top, Field parameters for a nonfocusing transducer. Bottom, Field parameters for a focusing transducers.

Figure 3 wo caption

Figure 4

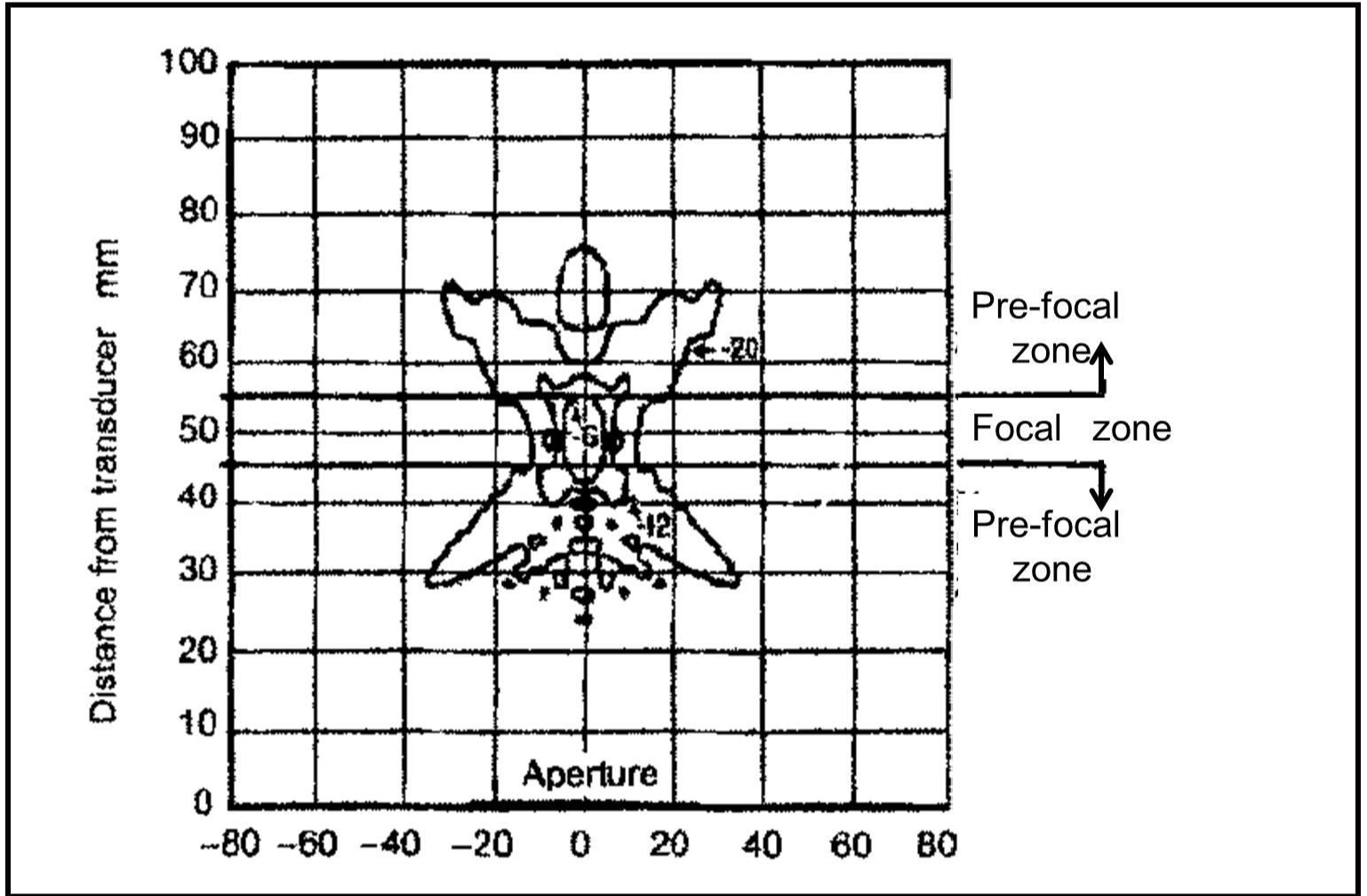

Beam contour (–6, –12, and –20 dB) for a 5-MHz curved transducer centered at location 0,0 (bottom center of graph) with a diameter of 25 mm and a radius of curvature of 50 mm.

Figure 4 wo caption

Figure 5

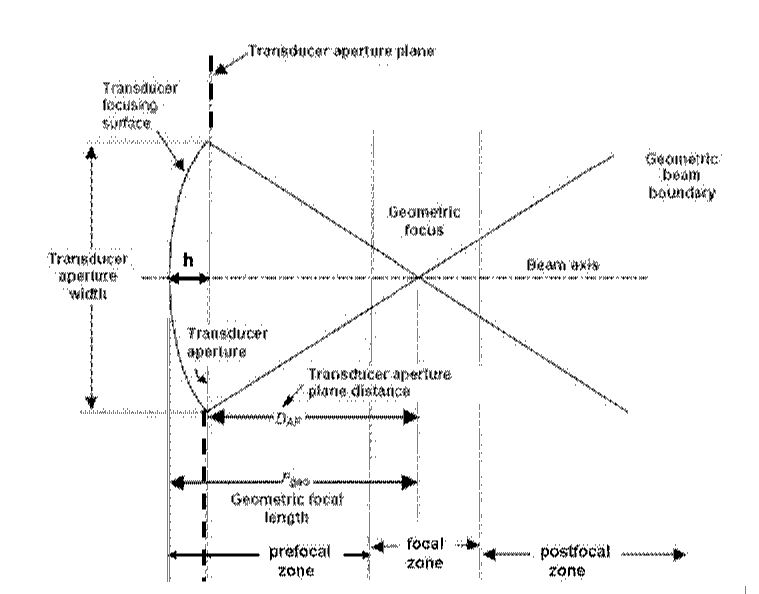

Parameters for describing a focusing transducer of a known geometry. Figure 5 wo caption

Figure 6

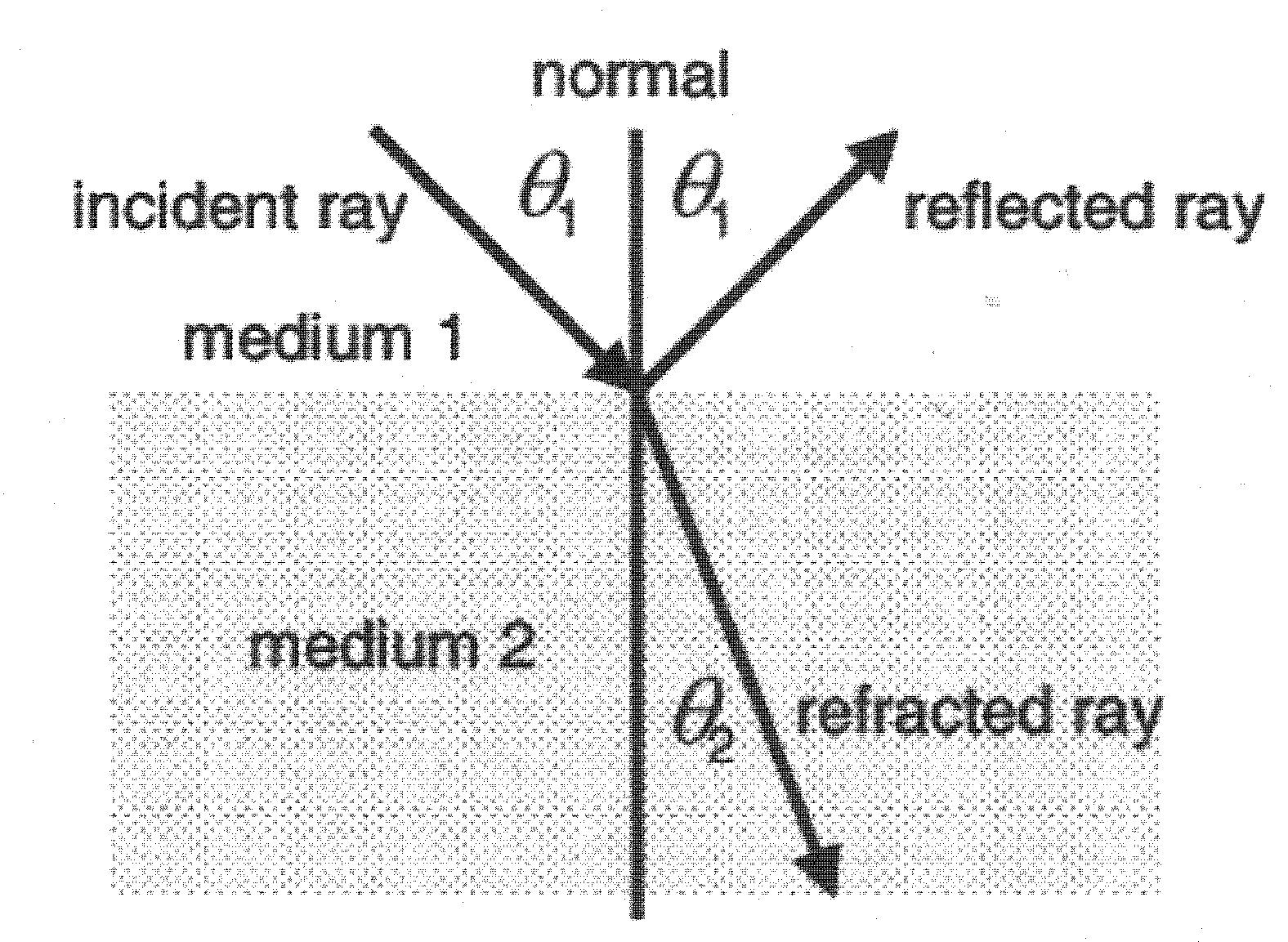

Reflection and refraction at a boundary between two media.

Figure 7

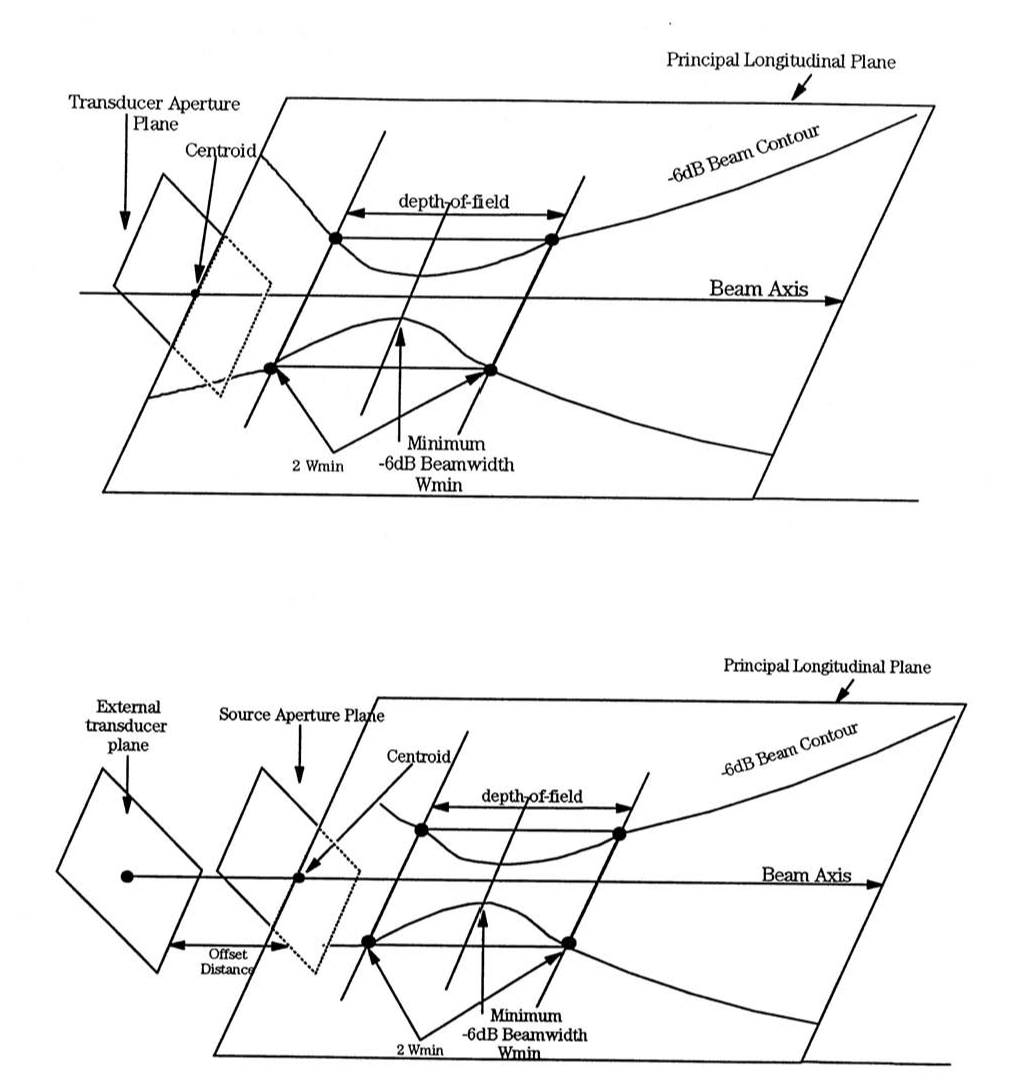

Beamwidth focus in a principal longitudinal plane. Top, For a transducer of known geometry. Bottom, for a transducer of unknown geometry (measurement case).

Figure 7 wo caption

Figure 8

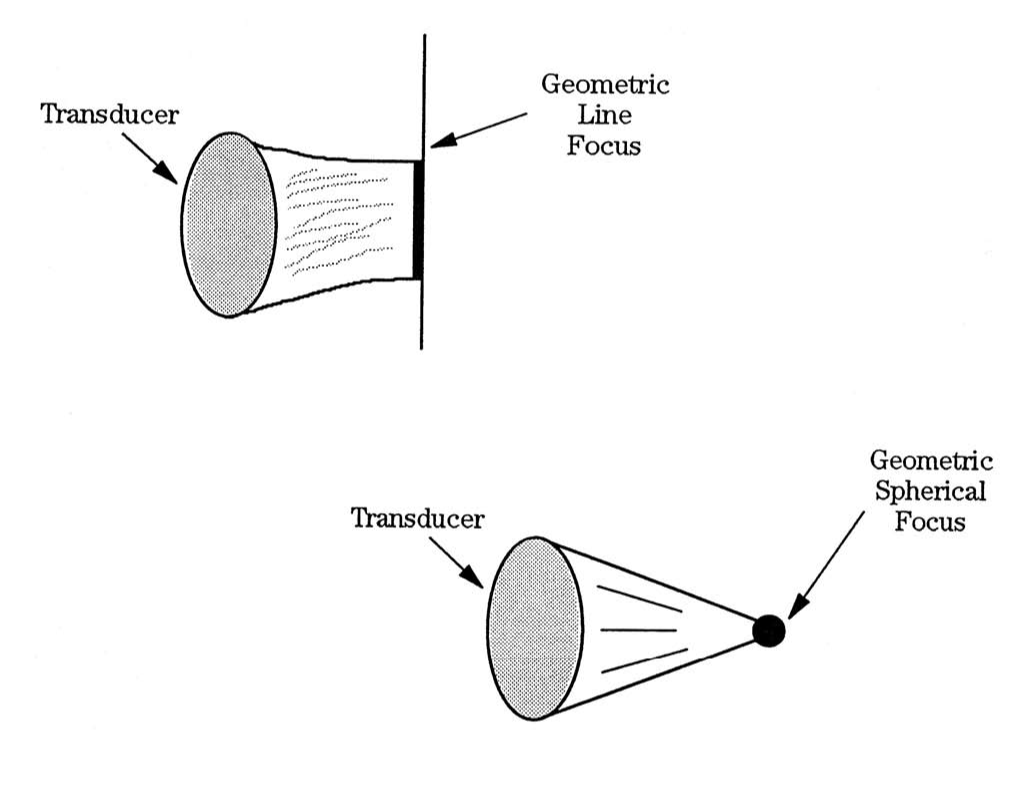

Types of geometric focusing. Top, Geometric line focus. Bottom, Geometric spherical focus.

Figure 9

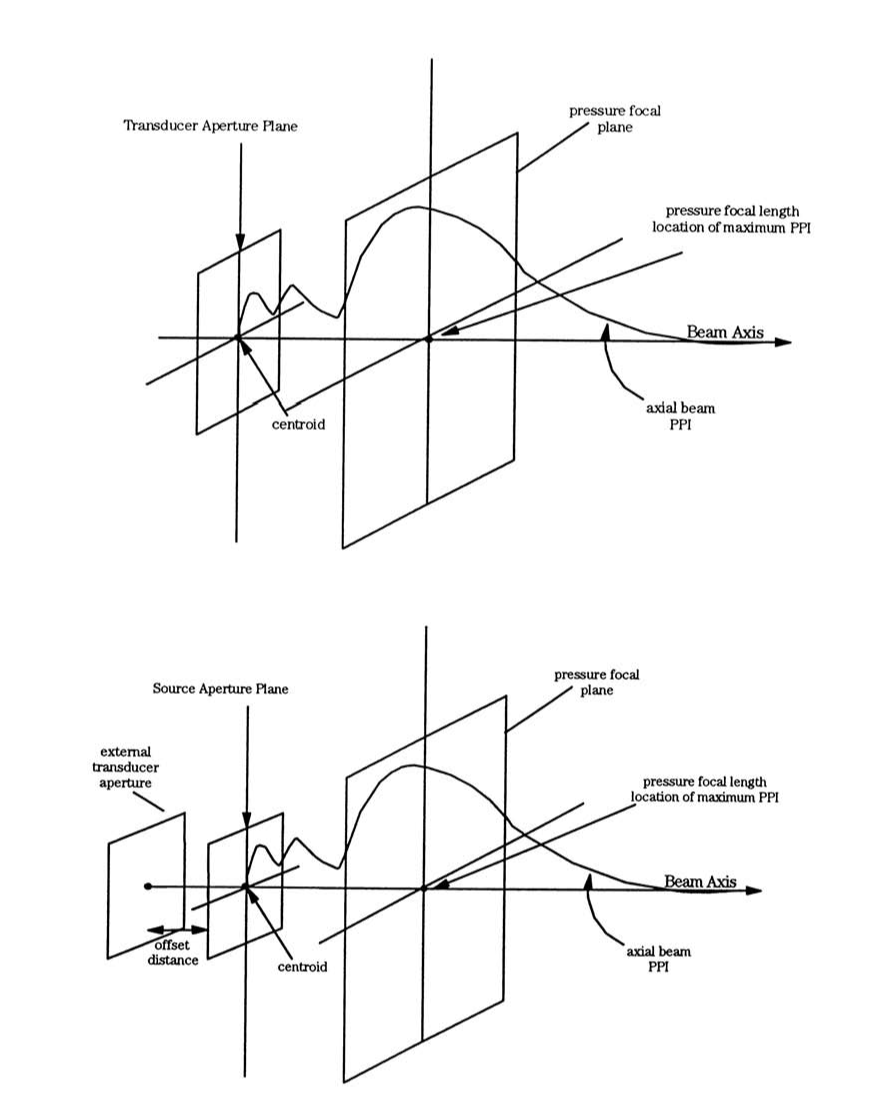

Pressure focus in a principal longitudinal plane. Top, For a transducer of known geometry. Bottom, for a transducer of unknown geometry (measurement case).

Figure 9 wo caption

Figure 10

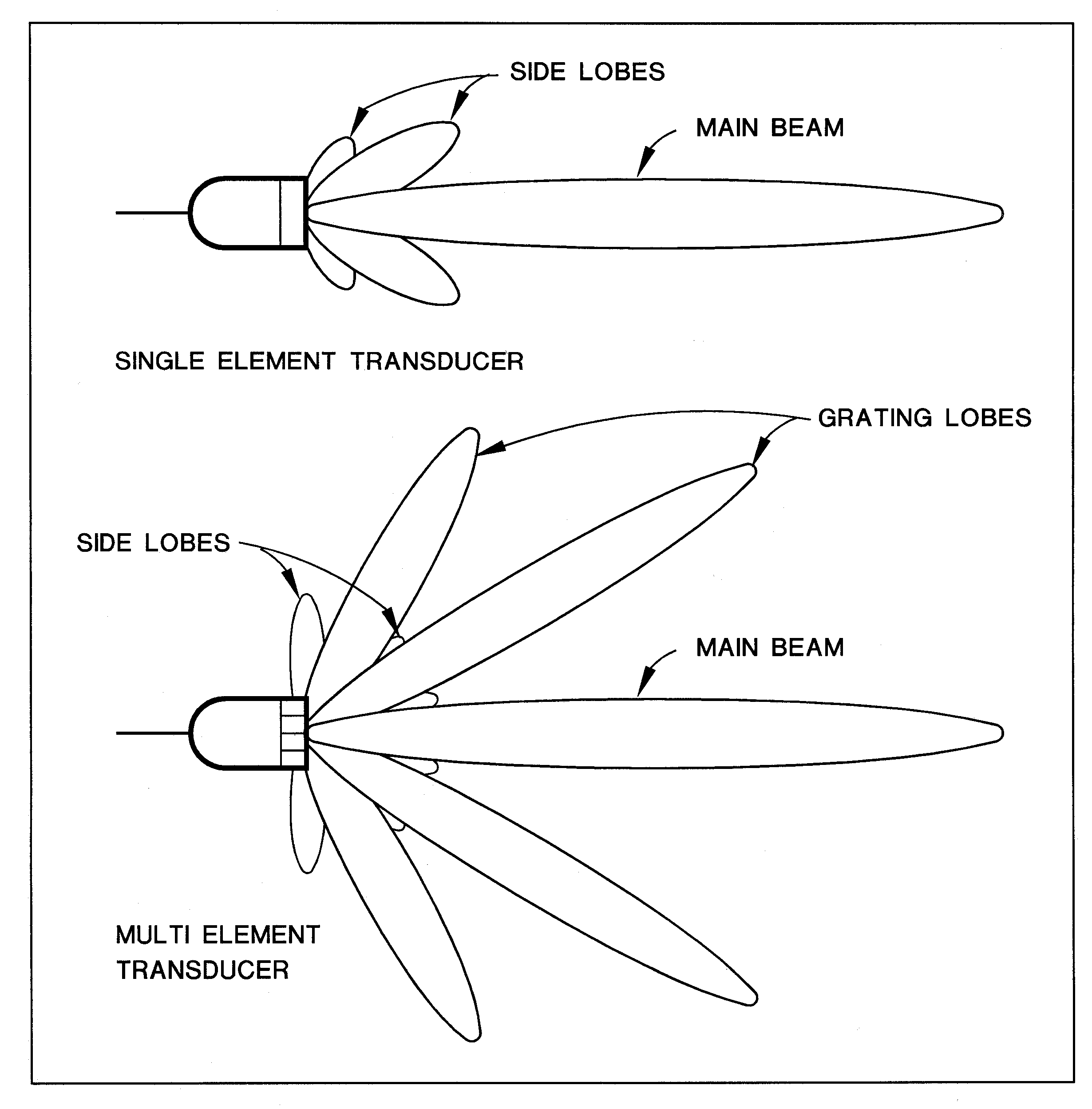

Beam patterns of single-element and multielement transducers showing side lobes and grating lobes.

Figure 10 wo caption

Figure 11

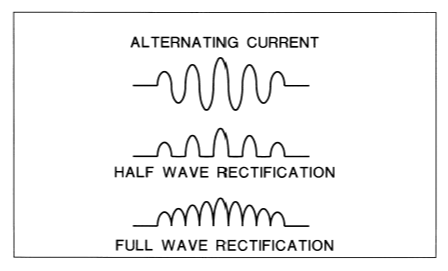

Half wave and full wave rectification.

Figure 12

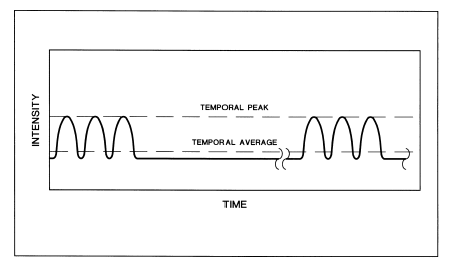

Temporal-peak and temporal-average intensities.

Figure 12 wo caption

Figure 13

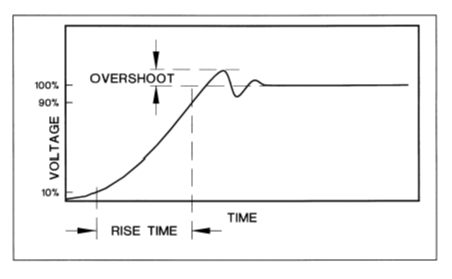

Voltage overshoot.

Figure 13 wo caption

Figure 14

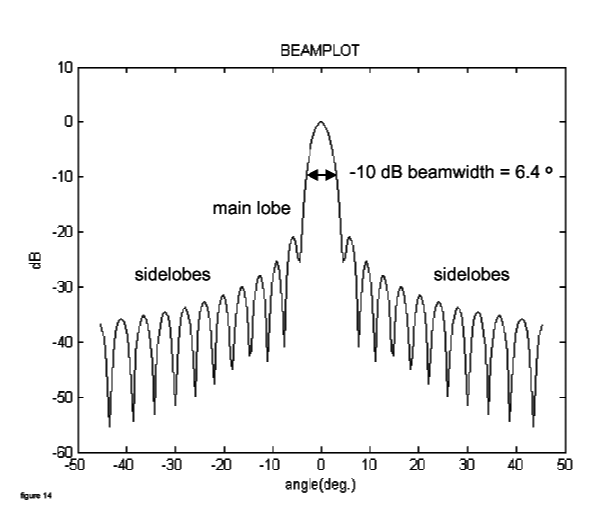

Beam plot showing side lobes, plotted in decibels versus angle. Shown are the main lobe centered at 0°, and at either side of the main lobe are the side lobes.

Figure 14 wo caption

Figure 15

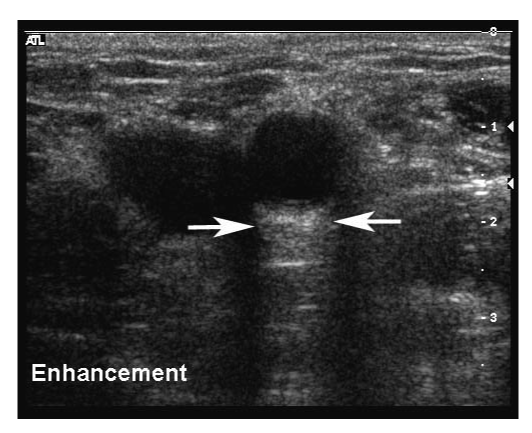

Acoustic enhancement seen distal to a low attenuating structure.

Figure 16

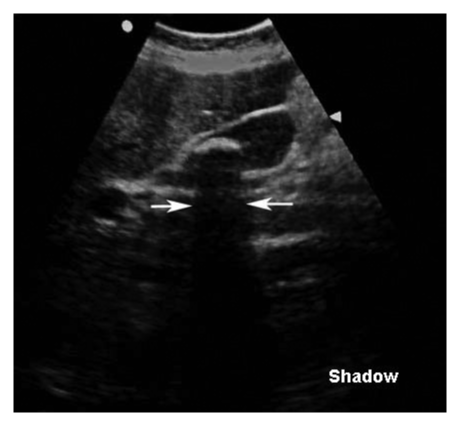

Acoustic shadow seen distal to a high-attenuating structure.

Figure 16 wo caption

Figure 17

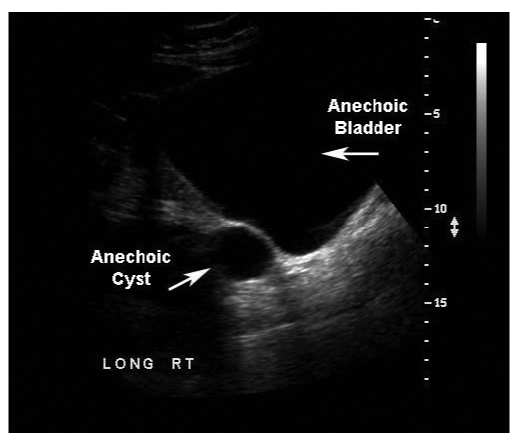

Anechoic regions in fluid-filled structures.

Figure 17 wo caption

Figure 18

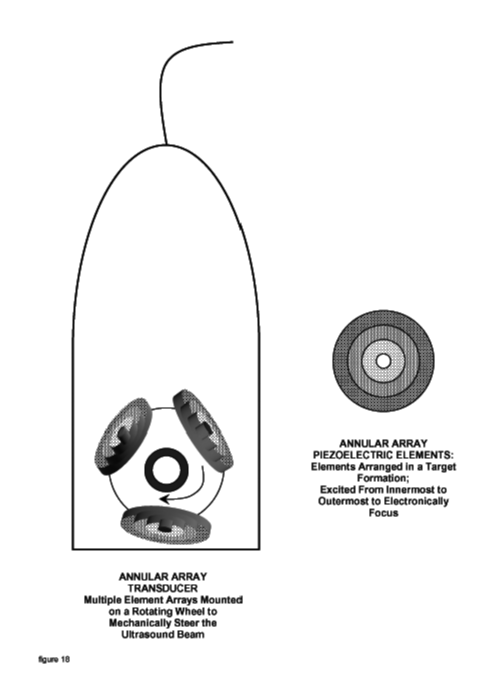

Annular transducer arrays. Note elements are in the form of concentric rings that are shaped like a bull’s eye target.

Figure 18 wo caption

Figure 19

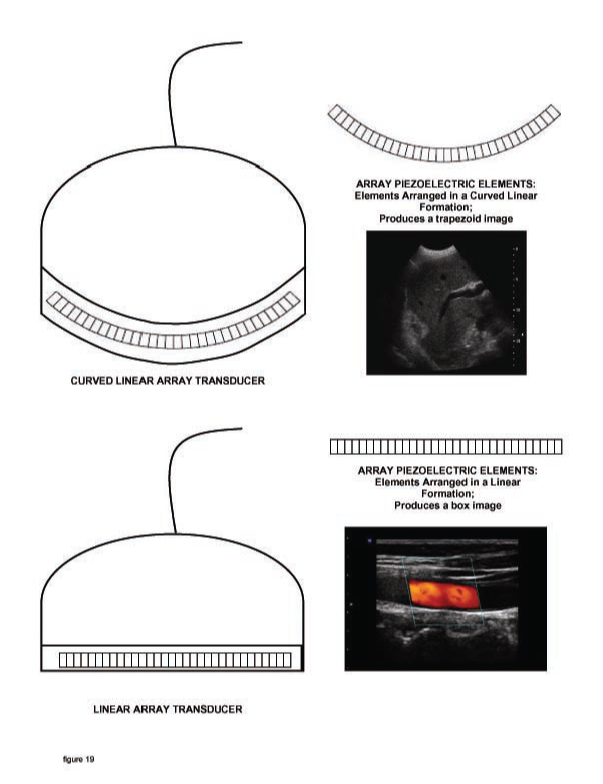

Linear transducer arrays. The top shows a curved linear array and its image format. The bottom shows an ordinary (straight) linear array and its image format, which is rectangular. Within the rectangle is a parallelogram-shaped inset commonly used for color flow or Doppler imaging. Note that phased arrays look physically like linear arrays but scan in an angle from a central point in the array and have a sector-shaped format exemplified by Figures 21 and 29.

Figure 19 wo caption

Figure 20

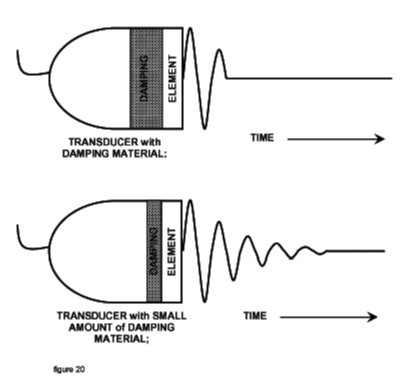

Effect of damping on transmitted pulse length. Shortening the transmitted pulse length produces better axial resolution. Better damping can be obtained by either a thicker backing or by increasing the absorption and scattering within the backing material.

Figure 20 wo caption

Figure 21

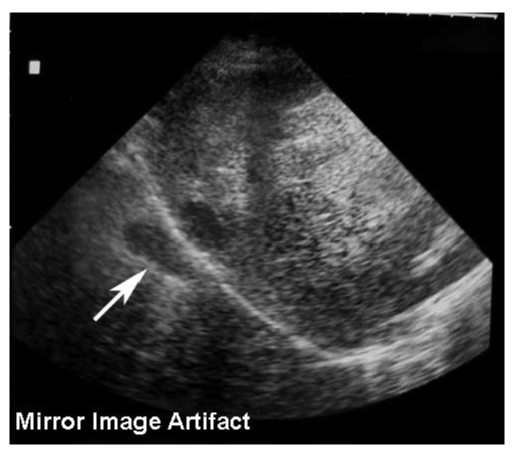

Mirror image artifact. Here the diaphragm acts as an acoustic mirror and maps a duplicate image of the region above it to the region below and here, to the left of the diaphragm. It is an artifact because structures appear at deeper depths where they don't exist.

Figure 21 wo caption

Figure 22

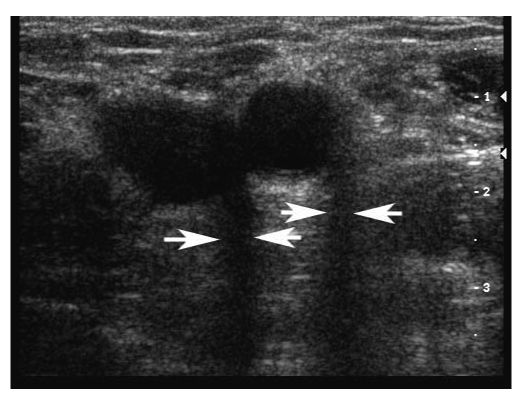

Refraction edge shadows.

Figure 22 wo caption

Figure 23

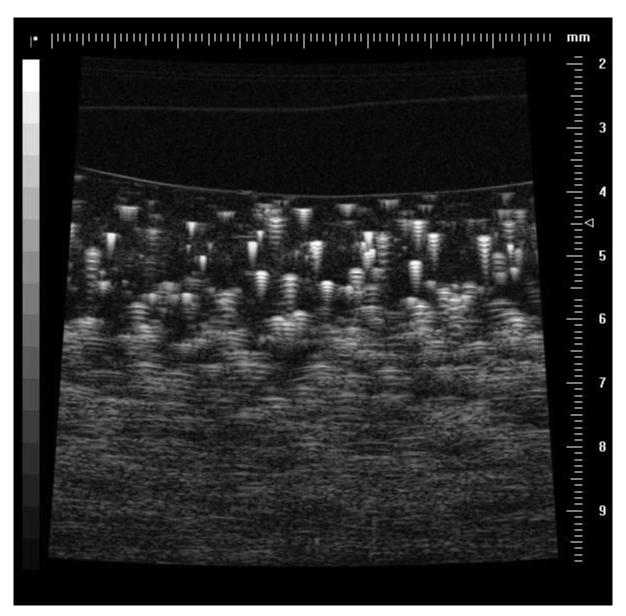

Multiple comet tail artifacts (reverberations).

Figure 23 wo caption

Figure 24

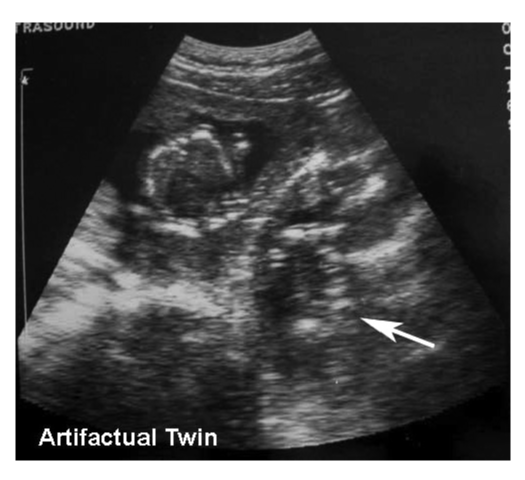

Artifactual twin resulting from refraction through the rectus muscle.

Figure 24 wo caption

Figure 25

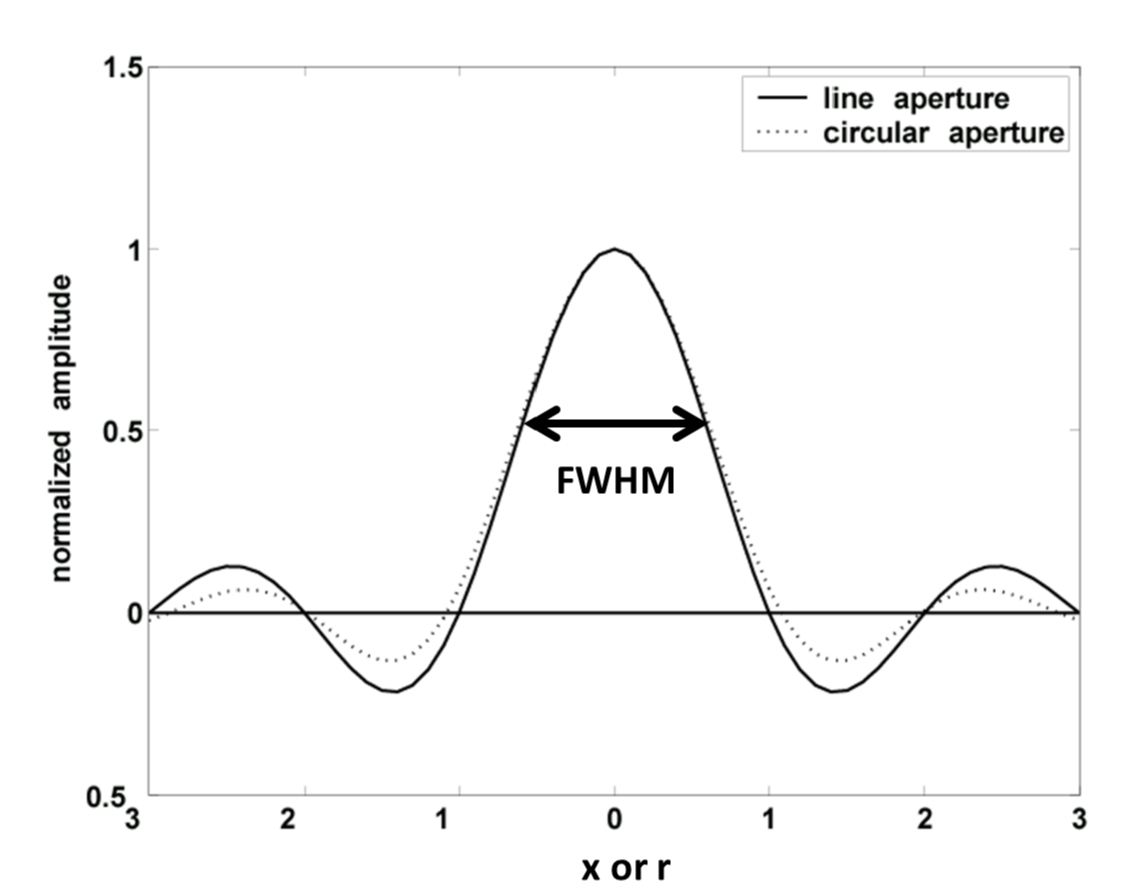

Full width half maximum widths of beams in a focal plane from either a line aperture or a circular aperture. Scaling adjusted so a square aperture (a line aperture on a side) and a circular aperture have the same area.

Figure 25 wo caption

Figure 26

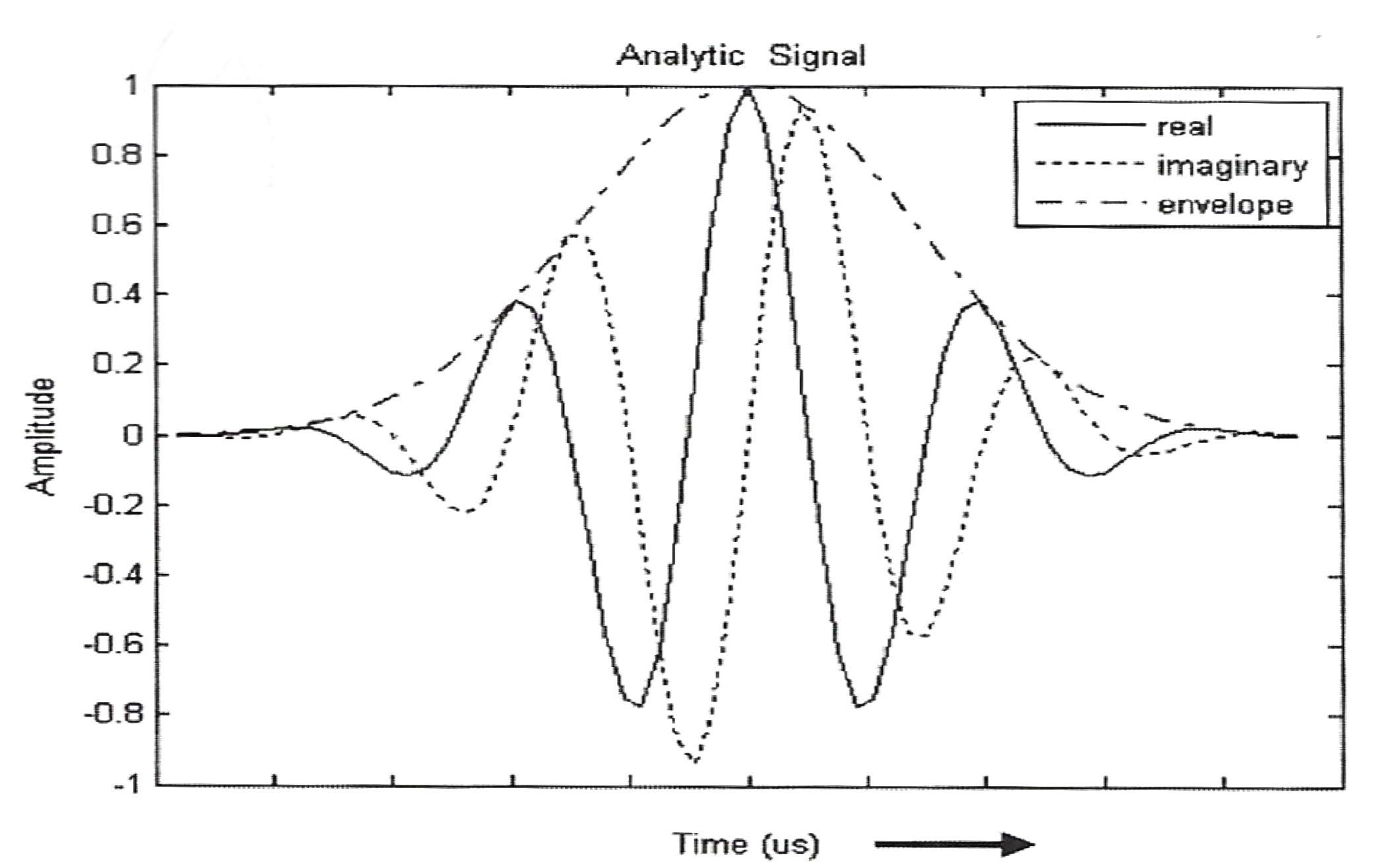

Envelope of a waveform. The envelope and quadrature (complex imaginary) signal are derived from the real signal. The real and quadrature signals are part of a complex analytic signal.

Figure 26 wo caption

Figure 27

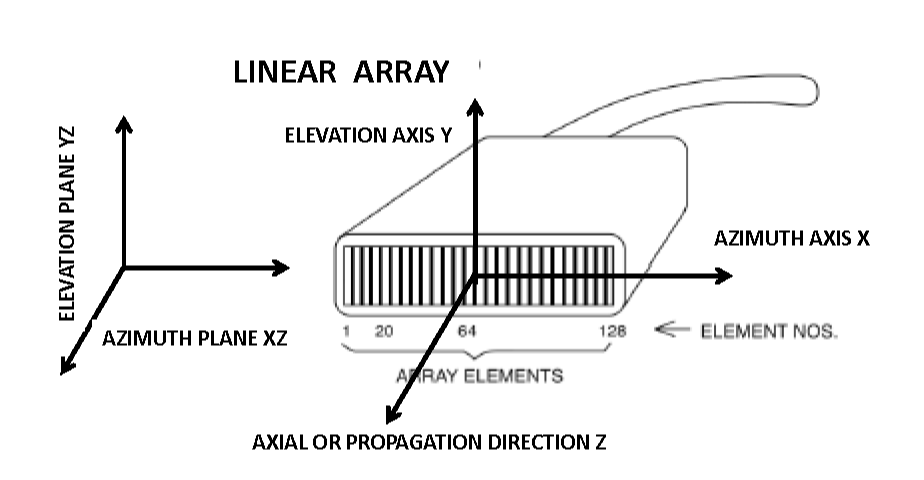

Coordinate system showing the relationship among the elevation and azimuthal (scan ) planes and a linear array with array elements. A transmit scan line is formed by an active aperture, a group of elements excited at the same time. As an active aperture moves along the length of the aperture, the emitted scan line moves with it.

Figure 27 wo caption

Figure 28

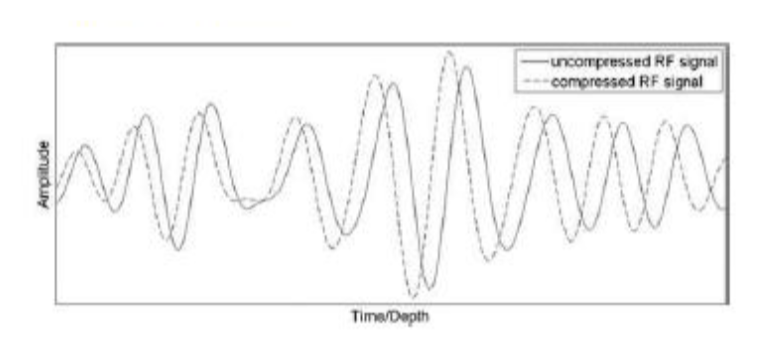

A typical pair of A-lines before (solid line) and after (dashed line) compression.

Figure 28 wo caption

Figure 29

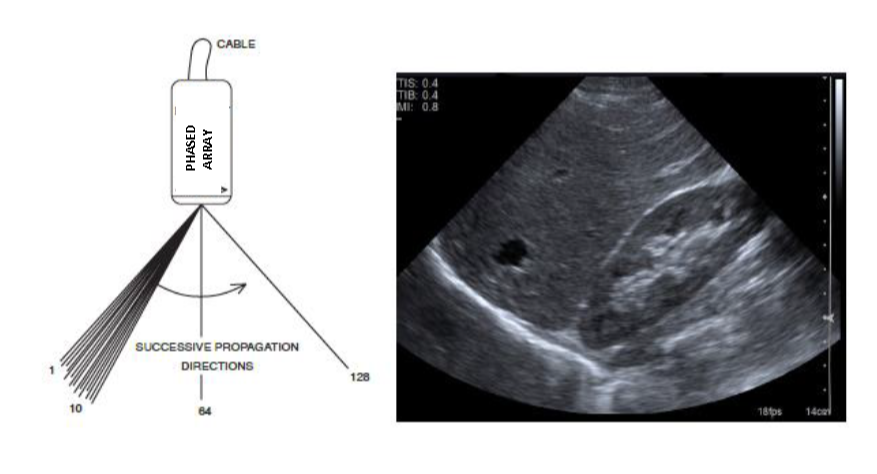

Diagram of a sector transducer (left) shows successive lines of propagation sweeping from left to right and numbered 1 through 128. The sector shape of the image on the display is shown on the right.

Figure 29 wo caption

Figure 30

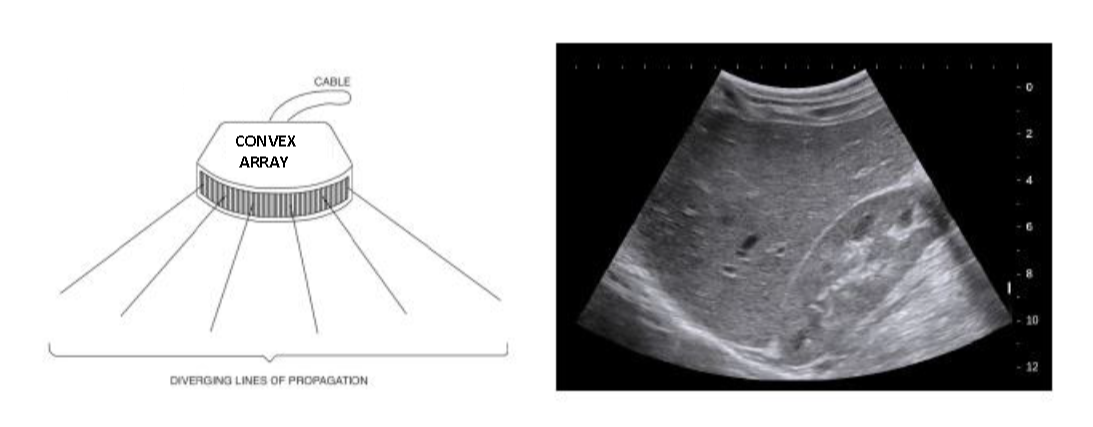

Convex array with scan lines and corresponding B-mode image.

Figure 30 wo caption

Figure 31

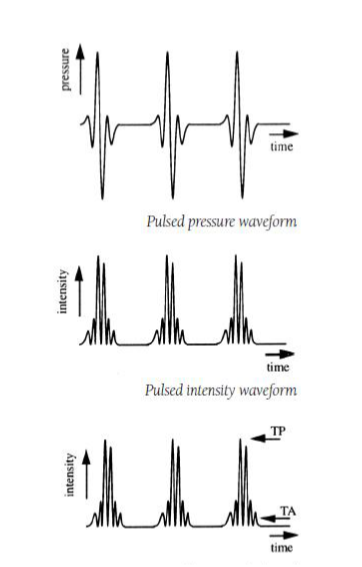

(top) Repeated pressure waveforms vs time. (middle) Pulsed intensity vs time. (bottom), intensity waveform maximum is temporal peak (TP) vs time and average intensity is the temporal average (TA) intensity over time.

Figure 31 wo caption

Figure 32

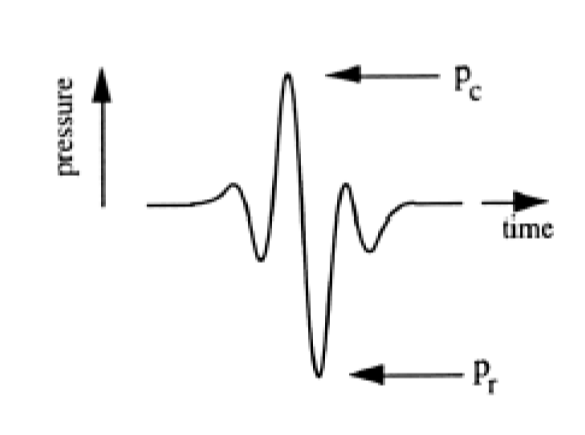

Peak compressional (pc) and peak rarefactional (pr) pressures depicted on a pressure waveform vs time.

Figure 32 wo caption

Figure 33

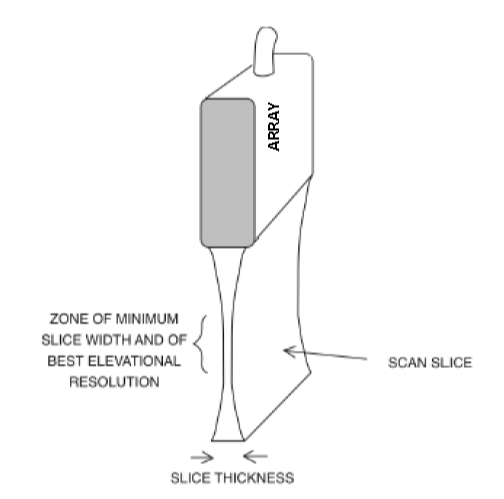

Diagram shows variation in elevational slice width with depth. Pulses propagate downward from the linear array within the slice depicted below the array. Elevational resolution is best where the slice width is minimum.

Figure 33 wo caption

Figure 34

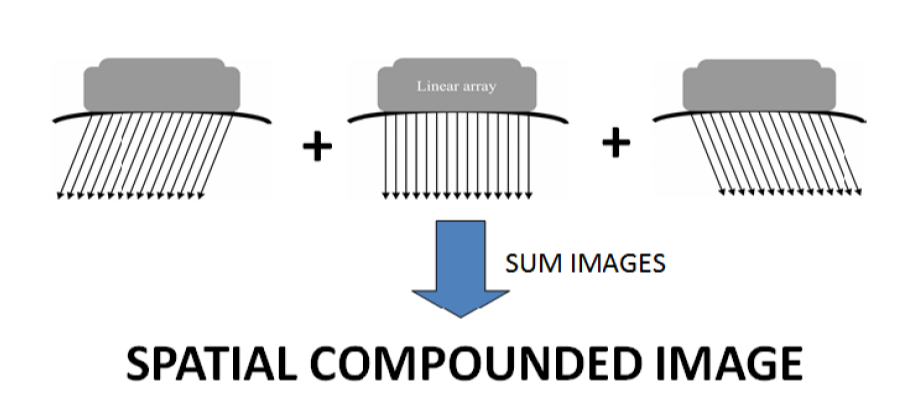

The summing of the amplitudes of acoustic scan lines of the linear array steered in different directions (here three are shown) produces a spatially compounded image with less speckle.

Figure 34 wo caption

Figure 35

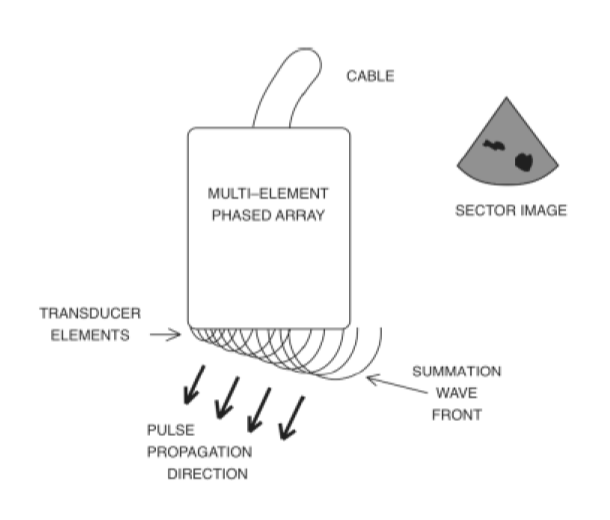

Steered wavefront from a phased array.

Figure 35 wo caption

Figure 36

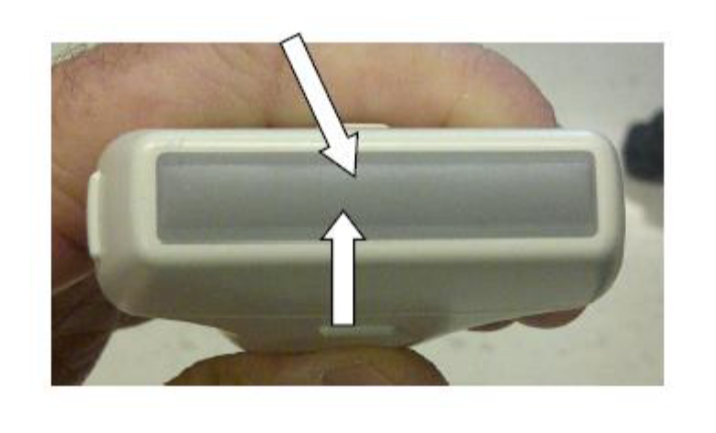

Transducer with an acoustic lens built into the transducer face (the ridge is shown between the arrows). This lens is used to focus the beam in the elevation plane. See Figure 33.
